Koven Air · project-built climate equipment

Commercial & Industrial
HVAC Equipment Manufacturer

Koven Air builds commercial and industrial HVAC equipment around the operating conditions that decide whether a system works after installation: load, airflow, temperature, humidity, utilities, controls and service access. Bring the project parameters first; we help turn them into a traceable equipment scope.

Request a Technical Review Explore Koven Air HVAC Equipment

Equipment families

19–2,200 RT

Chiller technologies

1,000–350,000 m³/h

Listed AHU series

18–23–400–36

Quality path

Commercial & Industrial HVAC Equipment Built Around Project Conditions

Projects go off course when a capacity figure is treated as the whole specification. A nominal capacity doesn’t prove a system fit.

Commercial & Industrial HVAC Equipment Manufacturer Factory

Test the sizing assumption first

The common assumption is that more nominal capacity always reduces risk, but that isn’t always true. Part-load behavior, indoor air quality, energy efficiency and humidity problems can appear because a 24-hour load profile, outdoor air and controls still govern the fit.

Give each HVAC equipment manufacturer the same load basis and operating schedule.
Ask how standard or high-efficiency options are rated at the stated condition.
Treat HVAC industry labels as screening terms, not an engineering selection.

Start with conditions that change the decision

Design load and load profile rather than one peak number.
Outdoor air, supply air, water, pressure and filtration requirements.
Temperature and humidity targets, including any dew-point boundary.
Utilities, controls, installation space and service access.

These inputs determine whether an air handler, rooftop unit, chiller, fan coil, dry cooling coil, dehumidifier or heat pump belongs in the concept. They also show where a standard configuration needs a project-specific option before an order is released.

Engineering

We review submitted parameters and calculation assumptions before selection, then identify open technical items.

Procurement

Use the same inputs for each proposal so scope, controls and test conditions are comparable.

Site

Reserve access for coils, filters, compressors, panels, ductwork or piping during layout review.

Explore Koven Air HVAC Equipment

Each family solves a different air, water, humidity or heating problem. Published ranges are screening evidence, while final performance is tied to the selected model, configuration and agreed design condition.

SYSTEM SERIES

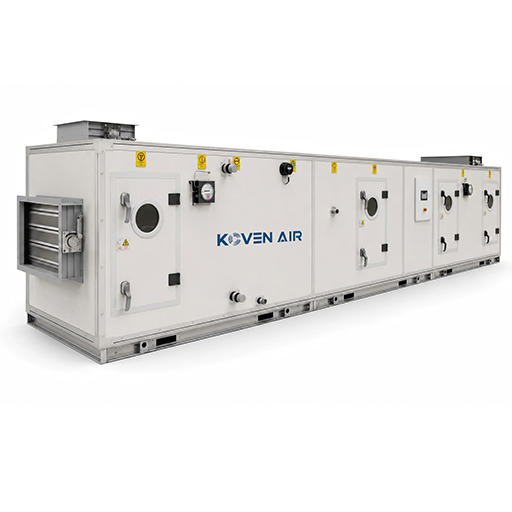

Air Handling Units

Listed series span 1,000 to 350,000 m³/h across applications; the highest listed band is makeup air. Industrial air handling units and dedicated outdoor air systems require project review of airflow, filtration and coil duty. For water coils, energy recovery or casing leakage, confirm the stated test basis.

Explore Air Handling Units

COOLING EQUIPMENT

Industrial Chillers

Listed commercial chillers cover 19 to 2,200 RT across technologies. Air-cooled chillers, water-cooled chillers, screw chillers and a packaged chiller each carry different water, ambient and package boundaries. Refrigerant and refrigeration circuit decisions remain model- and market-specific.

Explore Industrial Chillers

ROOFTOP SOLUTIONS

Packaged Rooftop Units

KAWD models list 1,800–99,900 m³/h, 9–523 kW cooling and 10–560 kW heating across models. These packaged units provide a screening range for commercial rooftop HVAC units. Confirm the operating envelope and controls with the selected model.

Explore Packaged Rooftop Units

HYDRONIC TERMINALS

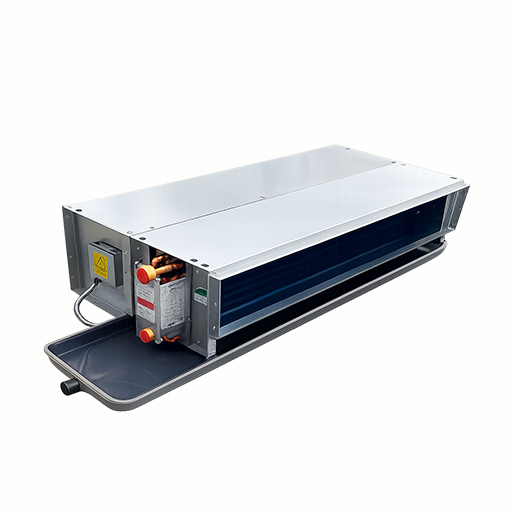

Fan Coil Units

The available types of fan coil units support zoned hydronic spaces. Air volume, sound and external static pressure are model-specific decisions.

Explore Fan Coil Units

HEAT EXCHANGE

Dry Cooling Coils

Dry cooling coil selection depends on water temperatures, rows, airflow and installation context. Treat listed conditions as a boundary for cooling requirements, not a universal result.

Explore Dry Cooling Coils

HUMIDITY CONTROL

Desiccant Dehumidifiers

Desiccant configurations address a defined regeneration approach and dew-point target. Results depend on configuration and process conditions.

Explore Desiccant Dehumidifiers

CORE INFRASTRUCTURE

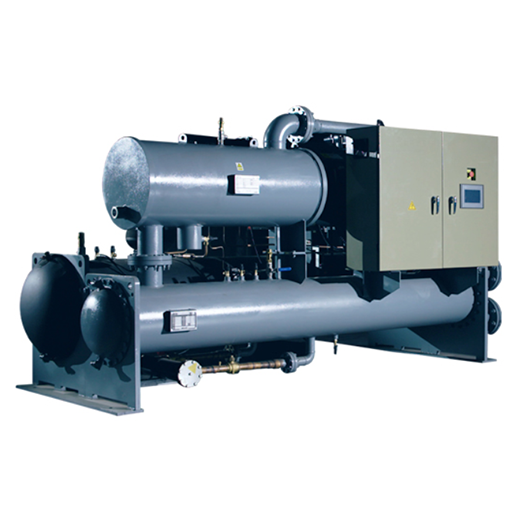

Industrial & Commercial Heat Pumps

Heat pumps are configured around heating and cooling source, distribution temperatures and operating conditions.

Explore Industrial & Commercial Heat Pumps

First-party product-material screening points

Evidence slice	Listed value points	Use in a project review
Commercial AHU material	8.5 kW lower and 600 kW upper listed cooling points	Confirm the applicable series, coil condition and airflow before selection.
Hospital / clean-space AHU material	8.5 kW lower and 1,843 kW upper listed cooling points	Treat this as a separate application range, not an all-AHU promise.
Packaged rooftop material	9 kW to 523 kW cooling; 10 kW to 560 kW heating	Verify model, ambient envelope, refrigerant option and controls.
Concealed fan-coil material	2.16 kW to 12.852 kW cooling; 1.6 MPa maximum working pressure	Check water conditions, external pressure, sound and installation type.
Cassette fan-coil material	2.16 kW to 14.4 kW total cooling; 3.57 kW to 21.32 kW heating	Use the cassette table only for the stated two-pipe or four-pipe configuration.
Two-row dry-coil material	1.6 kW to 34.6 kW; 2.4 MPa factory test pressure	Confirm the stated entering water, air condition and dry-operation boundary.
Three-row dry-coil material	2.0 kW to 50.7 kW	Rows alone do not determine output; airflow and water temperatures remain inputs.
Low-temperature heat-pump case	142 kW heating, 130 kW cooling and 97 kW heating at the stated case points	These are project/model examples, not a range for every heat pump.
High-temperature heat-pump case	185 kW heating at the stated case condition	Confirm the selected model, water target and ambient basis.
Factory process	24 hours of reported aging-test time	Ask which test record and acceptance item apply to the ordered unit.

Do not screen by one number

A single efficiency number can hide the operating condition. Compare package type, rating basis, fan or pump scope, water temperatures, ambient condition and part-load expectations before treating two HVAC products as equivalent.

Ask for product-family guidance

Match the HVAC System to the Load, Space and Environment

“Commercial HVAC system types” is a useful search phrase, but not a selection method. The right topology follows what must be conditioned, moved, rejected, recovered or controlled at the site.

7-Family HVAC Fit Matrix

HVAC Family	Project Signal	Question Before Selection
Air handling unit	Central ventilation or supply-air treatment	What airflow, pressure, outdoor-air and coil duty are required?
Industrial chiller	Process water or distributed cooling	What load profile, water temperatures, ambient and hydraulic scope apply?
Rooftop unit	Packaged air conditioning and heating	What airflow, cooling, heating, controls and roof constraints apply?
Fan coil unit	Zoned hydronic comfort	What zone load, sound and service access are needed?
Dry cooling coil	Sensible cooling with defined water	What coil rows, water temperatures and airflow are available?
Desiccant dehumidifier	Low-moisture space	What moisture load, regeneration energy and dew point are required?
Heat pump	Project heating and cooling duty	What source and distribution temperatures govern the design?

Koven Air Engineering Note

“Quotes look comparable until the assumptions differ.”

Align conditions, equipment inclusions, controls and test points before comparing price or operating cost.

A data center, food processing line, controlled room and commercial roof carry different risk profiles. ASHRAE treats cooling, humidity, energy and equipment testing as distinct data-center topics; process cooling systems also need process water, heat-exchanger duty and temperature-control review.

Custom Air Handling and Process Cooling Engineering

Customization should make a condition traceable, not turn a vague request into a vague promise. We work from air or water conditions, pressure, controls, utilities and physical interfaces to define the configuration decisions that belong in the proposal.

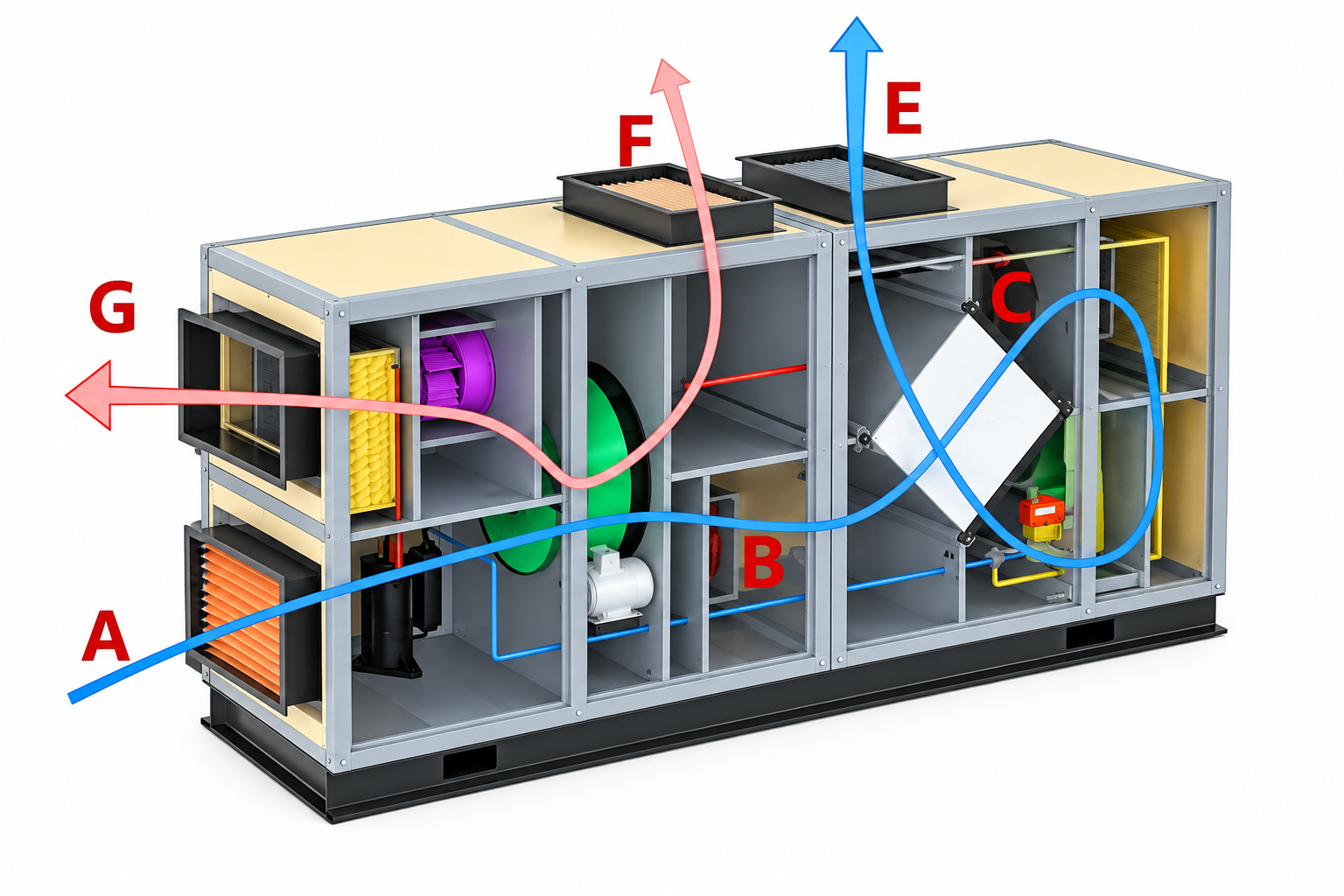

Air handling unit diagram with supply and exhaust airflow paths

// CONFIG 01.

Air-side engineering

Custom air handling units can combine outdoor air, supply air, filtration, cooling coil, heating, energy recovery and access requirements.

// CONFIG 02.

Water-side engineering

An industrial chiller manufacturer must separate cooling capacity from the industrial water chiller system: process water, pumps, glycol, cooling tower interface and controls can change the configuration.

// CONFIG 03.

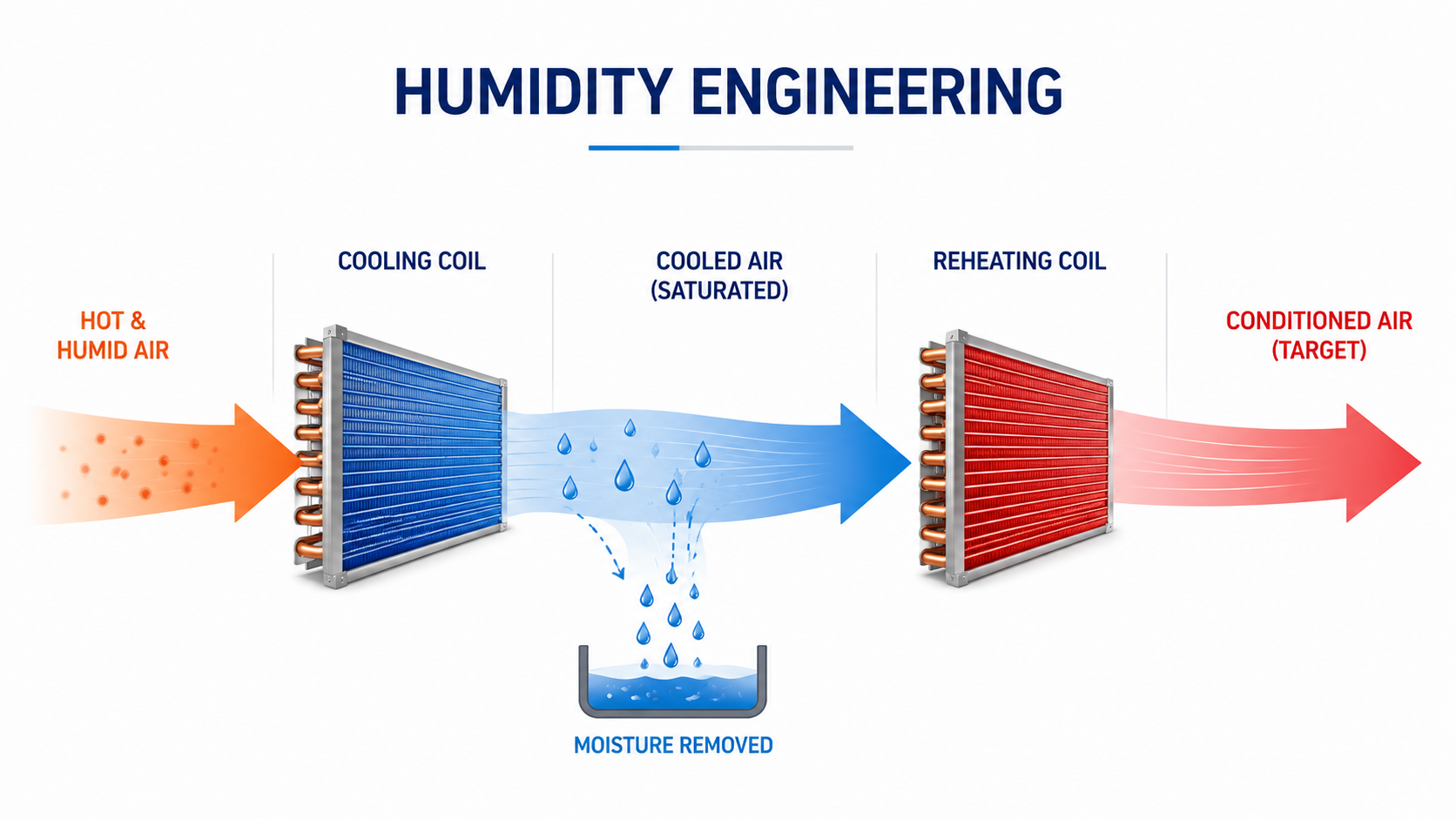

Humidity engineering

Dehumidification isn’t interchangeable with sensible cooling. Regeneration temperature, moisture load and target humidity must be reviewed together.

Define what custom means

For industrial applications, custom cooling systems should begin with cooling requirements and precise temperature control boundaries, not a generic customization claim. Koven Air connects design and manufacturing questions to the specified climate control duty, interfaces and acceptance evidence.

Name the process condition and the cooling solution boundary.

Separate equipment performance from site distribution and controls.

Confirm which technical documents support the selected configuration.

The trade-off is practical: a broader configuration addresses more interfaces, yet it needs more complete project information and clearer submittal review. Koven Air can verify project calculation parameters and recommend a configuration boundary; it doesn’t replace final design authority or site coordination.

Controls are a scope item

Control systems, sensors, sequences, field wiring and building interfaces should be named in the equipment scope. Treating them as assumed accessories can leave a suitable HVAC system without a clean handoff.

Review the air handling unit family

Manufacturing and Testing You Can Trace

Qualification is harder when a supplier offers only a polished overview. Koven Air was founded in 2007, has operated its brand and export business since 2010, and reports equipment use in 35 countries; these are context, not a substitute for project documents.

Koven Air Factory Manufacturing Traceability 1

Koven Air Factory Manufacturing Traceability 2

Koven Air Factory Manufacturing Traceability 3

Koven Air Factory Manufacturing Traceability 4

20,000
m² Factory area

18 Standardized processes

23 Sheet-metal steps

400 Traceability points

36 Factory inspections

24 h Aging test

Lab Chiller and heat-pump testing

Trace Ask which records apply

The 18-23-400-36 Quality Path describes an internal manufacturing and inspection sequence, not an external certification.

Review which drawings, component records, test items and shipment documents apply to the selected equipment.

Factory test is not site commissioning

Testing before shipment confirms the agreed factory activity. Installation, utilities, duct or piping connections, control integration and field sequences remain site-verification tasks.

Commercial buildings

Rooftop units, air handling units and fan coils can be reviewed where air distribution, heating and cooling, access and controls suit the layout.

Industrial process

Industrial water chillers, process chillers, coils and dehumidification options can be reviewed when process cooling, cleanability or moisture management drive the project.

Controlled environments

Airflow, filtration, humidity control, redundancy planning and maintainable access become material design conversations for a controlled environment or data center.

Application risk changes the scope

A 24-hour data center, a food processing line and an office building don’t share the same failure mode because the load profile, moisture and continuity needs differ. Koven Air reviews cooling solutions, filtration and redundancy against the application rather than assuming one industry label defines the equipment.

Keep the boundary visible

Koven Air can discuss equipment families and configuration needs. Final operating outcome depends on selected model, system design, installation, controls and field commissioning.

From Design Verification to Commissioning Support

Commissioning responsibility becomes unclear after shipment when each party assumes another owner. We work through a sequence: parameter review before production, factory testing before shipment, then installation and commissioning guidance as the site is prepared.

Before manufacture

Share design basis, loads, utilities, interfaces and acceptance expectations. Koven Air performs professional calculation verification against submitted parameters.

Before shipment

Equipment is manufactured and tested before shipment. Confirm the test points, records and documentation for the specific configuration.

At installation and beyond

Technical personnel can provide installation and commissioning guidance with site adaptations as needed, followed by warranty-period issue handling, training and long-term technical guidance. Long-term technical support remains guidance for the selected equipment, not a substitute for local site responsibility.

DOE describes commissioning as verifying installed systems against original design and engineering criteria. Factory activity supports a handoff, but can’t certify that field wiring, sequences, ductwork, piping, balancing and controls integration are correct on site.

Set a responsibility map early

Name responsibility for installation, utilities, controls integration, start-up coordination, acceptance evidence and maintenance. The handoff is clearer when each task has an owner before shipment.

Discuss handoff & commissioning support

Advanced Solutions Commercial & Industrial HVAC Equipment

Engineered for strict tolerances and extreme environments. Explore our global installations from cleanrooms and lithium battery factories to advanced hospital implementations.

01 / 21

Air Handling Unit – Hospital Project

AHU Manufacturing Factory

Commercial AHU Rooftop

Desiccant Dehumidifier – Lithium Battery

Rotary Desiccant Dehumidifier

Commercial Desiccant Unit

Industrial Dry Cooling Coil

Cleanroom Dry Cooling Coil

Pharma Process Cooling Coil

Fan Coil Unit – Hotel Installation

4-Way Ceiling Cassette FCU

Concealed Horizontal FCU

Industrial Screw Heat Pump

Heat Pump Chiller – Hospital

Water Source Heat Pump

Air-Cooled Scroll Chiller

Air-Cooled Screw Chiller Factory

Water-Cooled Scroll Chiller

Commercial Rooftop HVAC

DOAS Rooftop Unit – School

Rooftop Unit with Heat Pump

Plan Your HVAC Equipment Purchase

Price alone can’t show whether two commercial HVAC equipment quotes cover the same technical and delivery scope. Quotes look comparable until the assumptions differ.

01 The Honest Trade-off

02 Aligned Quote Fields

03 Lifecycle-Cost Inputs

Use a complete request

The HVAC Project Input Checklist captures fields an engineering review needs. The comparison tool shows whether those fields were answered consistently across two or three quote scopes.

Compare quote scope

The honest trade-off

The honest version is that no single headline number settles a procurement decision. Koven Air recommends testing four common assumptions before an RFQ is compared.

Bigger isn’t always better when part-load operation and humidity control can change the risk.
A higher efficiency number isn’t always comparable across package types and rating conditions.
Factory testing isn’t necessarily site commissioning when controls and utilities remain field work.
The cheapest quoted total isn’t always the lowest lifecycle cost on a 10-year project basis.

Scope Alignment

Confirming technical delivery across quotes.

Aligned quote field

Why it changes the decision

Confirm

Design condition and load

Changes equipment configuration

Air, water, temperature, humidity and pressure assumptions

Equipment and accessories

Changes physical supply

Coils, filtration, controls, pumps, sensors and panels

Test and documents

Changes shipment evidence

Test points, drawings, records and acceptance items

Site and commissioning boundary

Changes handoff risk

Utilities, installation, controls, guidance and responsibility

Lifecycle-cost inputs

Prevents a misleading payback comparison

Runtime, tariffs, maintenance, installation and service-life assumptions

Lifecycle-Cost Guidance

DOE life-cycle cost guidance compares alternatives with valid initial and operating inputs over a project life. It doesn’t support universal payback where runtime, tariffs, installation scope, maintenance and service-life assumptions are unknown.

Why Project Teams Work With Koven Air

Project teams need a manufacturer of HVAC systems that can discuss equipment configuration, factory evidence and site responsibilities without hiding uncertainty behind a generic promise. Koven Air combines seven equipment families, parameter verification, internal manufacturing traceability and a defined support path.

A project-specific conversation requires more input than an off-the-shelf request. That effort is useful when the alternative is a proposal that leaves load, controls, service access or commissioning responsibility unresolved.

Start a project-specific discussion

Connected equipment portfolio

Air-side, water-side, humidity and heat-pump options let the project need guide the starting family.

Traceable production conversation

The internal 18-23-400-36 sequence gives concrete questions about manufacturing processes, inspections and records tied to a unit.

Bounded support

We offer calculation verification, testing, guidance, warranty-period issue handling, training and long-term technical guidance without an unverified response-time promise.

Review before relying

Ask to review the configuration basis and documentation relevant to the order. Equipment used in 35 countries is a company fact, but it doesn’t replace project-specific qualification.

HVAC Systems Engineering Terminal

HVAC Project Input Checklist

Use this checklist to prepare an engineering-review request. It reports completeness only; it does not size equipment or guarantee a system fit.

Init Sequence

7-Family HVAC Equipment Fit Selector

Screen system topology and application needs before an engineering review. This tool returns equipment families to investigate, never a model, capacity or performance guarantee.

Execute Matrix

HVAC Quote Scope Comparison

Compare completion of aligned scope fields across up to three quotes. It does not rank vendors, calculate price, or validate technical performance.

Run Analysis

Commercial & Industrial HVAC Equipment FAQ for Project Buyers and Engineers

Use each answer as a verification prompt

The risk is treating a general answer as a model guarantee. Koven Air uses these questions to expose missing engineering, procurement and site details before the selected equipment and documents are approved.

Start with design load, load profile, outdoor and indoor conditions, airflow or water conditions, humidity or dew point, pressure, utilities, controls, installation space and access. Record unknown items as open requirements rather than assumed performance.

Choose topology from the load and distribution need: central air treatment, packaged rooftop air conditioning, process or hydronic cooling, or configured heating and cooling. Final model and configuration need project-condition review.

Koven Air can discuss configurations for custom air handling, process cooling, filtration, temperature and humidity control. The target must be reviewed against model, components, design condition, installation and controls.

Published ranges are screening information, not a guarantee for every configuration. Confirm selected model, package type, airflow or water conditions, ambient, accessories and agreed test basis.

Equipment is manufactured and tested before shipment. Align drawings, records, test points, acceptance expectations and shipment handoff with the final configuration.

Technical personnel can provide installation and commissioning guidance, with site adaptations as needed. Commissioning remains a site activity involving the installed system, utilities, controls, ductwork or piping and responsible parties.

Design conditions, equipment and accessories, controls, test documentation, delivery interfaces and service responsibilities all affect scope. A comparison is useful only when those assumptions are aligned.

Review filter paths, coil access, electrical clearance, compressor or pump service area and physical replacement route before finalizing layout. Service access matters after the equipment arrives, especially where shutdown windows are limited.

The 8-Input Project Basis

The risk is a hidden utility, control point or access path delaying selection because the manufacturer has to guess at the system boundary. Koven Air uses eight input groups, including any 24-hour operating duty, to make the first engineering and procurement conversation reviewable.
